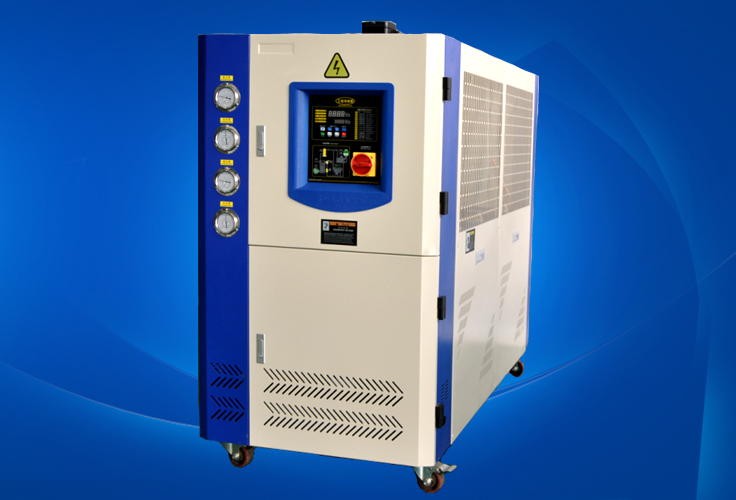

Air-cooled Industrial Chiller

Air-cooled Industrial Chiller（-5℃）Specifications

Model			RC-3AF	RC-5AF	RC-8AF	RC-10AF	RC-12AF
Cooling Capacity		kW	4.5	7.0	12.0	14.0	18.0
Cooling Capacity		103kcal/h	3.87	6.02	10.32	12.04	15.48
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	3.1	5.0	7.0	9.0	10.8
Compressor Type			Scroll
Compressor Power		kW	2.25	3.75	6.0	7.5	9.0
Pump Power		kW	0.55	0.55	0.75	0.75	1.15
Pump Head		m	22.5	21.0	25.5	22.5	24.0
Chilled Water Flow		m3/h	1.5	2.5	3.5	4.5	5.5
Evaporator Type			Water Tank Type/Stainless Steel Plate Type
Water Tank Volume		L	55	90	120	200	200
Pipe Size		DN	25	25	32	40	40
Condenser			Coil
Air Volume		m3/h	4000	6800	9300	10600	12000
Fan power		W	150	360	500	500	500
Refrigerant			R22/R404
Throttle Mode			Capillary Tube/Expansion Valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	58	58	62	62	65
Weight		kg	135	175	300	430	550

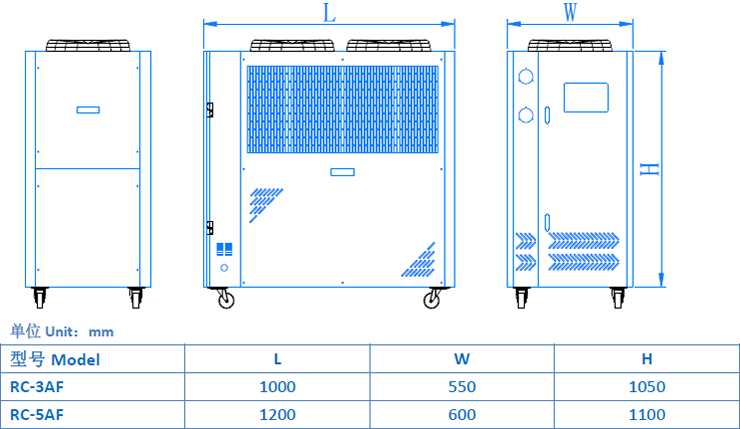

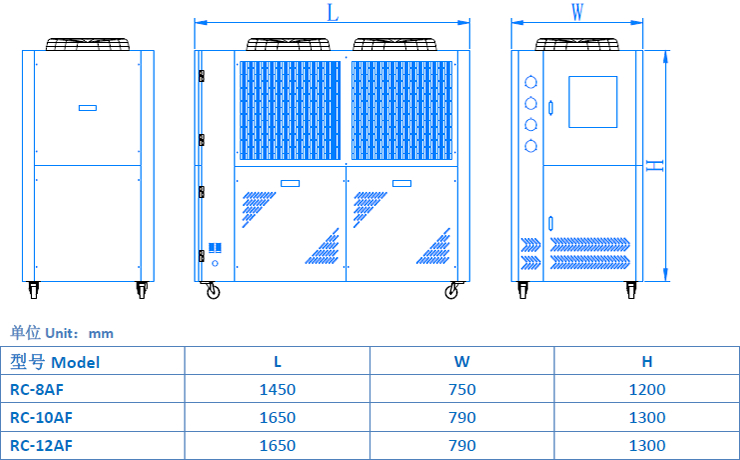

Dimensions	L	mm	1000	1200	1450	1650	1650
	W	mm	550	600	750	790	790
	H	mm	1120	1170	1300	1400	1400

Model			RC-15AF	RC-20AF	RC-25AF	RC-30AF	RC-40AF
Cooling Capacity		kW	22.0	32.0	36.5	45.5	54.0
Cooling Capacity		103kcal/h	18.92	27.52	31.39	39.13	46.43
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	15.2	20.1	22.2	29.4	35.5
Compressor Type			Scroll
Compressor Power		kW	11.25	15.0	18.75	22.5	30.0
Pump Power		kW	2.25	2.25	2.25	2.25	3.75
Pump Head		m	27.5	27.0	26.5	25.5	28.5
Chilled Water Flow		m3/h	7.5	9.0	10.5	13.0	18.0
Evaporator Type			Water Tank Type/ Stainless Steel Plate Type
Water Tank Volume		L	280	350	350	420	480
Pipe Size		DN	50	50	65	65	80
Condenser			Coil
Air Volume		m3/h	16000	20000	24000	29000	39600
Fan Power		W	1200	1600	1700	2200	2700
Refrigerant			R22/R404
Throttle Mode			Expansion Valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	65	65	68	68	68
Weight		kg	750	830	920	1100	1250

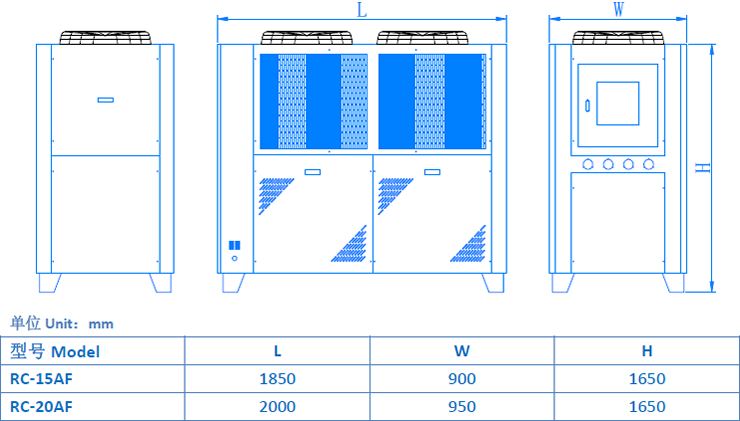

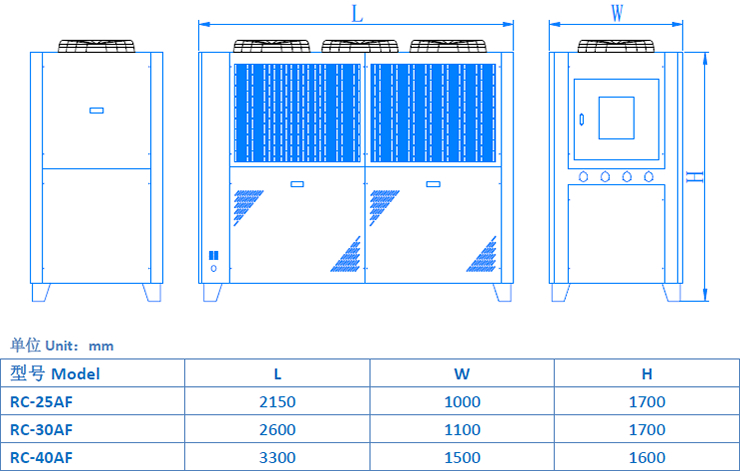

Dimensions	L	mm	1850	2000	2150	2600	3300
	W	mm	900	950	1000	1100	1500
	H	mm	1650	1650	1700	1700	1600

Directions：
1、The cooling capacity is based on a 35℃ ambient temperature, a 0℃ entering water temperature, a –5℃ leaving water temperature.
2、Design and specification are subject to change without prior notice.
3、All products are our standard products, please contact with us for special design.

Air-cooled Industrial Chiller（-10℃）Specifications

Model			RC-3AF	RC-5AF	RC-8AF	RC-10AF	RC-12AF
Cooling Capacity		kW	3.0	4.7	7.9	11.0	13.5
Cooling Capacity		103kcal/h	2.58	4.04	6.79	9.46	11.61
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	3.1	5.0	7.0	9.5	10.8
Compressor Type			Scroll
Compressor Power		kW	2.25	3.75	6.0	7.5	9.0
Pump Power		kW	0.55	0.75	0.75	1.15	1.15
Pump Head		m	22.5	22.0	20.0	22.5	20.0
Chilled Water Flow		m3/h	0.89	1.5	2.0	2.5	3.2
Evaporator Type			Water Tank Type/Stainless Steel Plate Type
Water Tank Volume		L	55	90	120	200	200
Pipe Size		DN	25	25	32	40	40
Condenser			Coil
Air Volume		m3/h	4000	6800	9300	10600	12000
Fan Power		W	150	360	500	500	500
Refrigerant			R22/R404
Throttle Mode			Capillary Tube/Expansion Valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	58	58	62	62	65
Weight		kg	135	175	300	430	550
Dimensions	L	mm	1000	1200	1450	1650	1650
	W	mm	550	600	750	790	790
	H	mm	1120	1170	1300	1400	1400

Model			RC-15AF	RC-20AF	RC-25AF	RC-30AF	RC-40AF
Cooling Capacity		kW	16.5	22.0	24.5	27.0	35.0
Cooling Capacity		103kcal/h	14.19	18.92	20.64	23.22	30.1
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	15.2	20.1	22.2	29.4	35.5
Compressor Type			Scroll
Compressor Power		kW	11.25	15.0	18.75	22.5	30.0
Pump Power		kW	2.25	2.25	2.25	3.75	3.75
Pump Head		m	25.5	22.0	20.0	25.5	20.0
Chilled Water Flow		m3/h	4.5	6.0	7.5	9.0	11.0
Evaporator Type			Water Tank Type/Stainless Steel Plate Type
Water Tank Volume		L	280	350	350	420	480
Pipe Size		DN	50	50	65	65	80
Condenser			Coil
Air Volume		m3/h	16000	20000	24000	29000	39600
Fan Power		W	1200	1600	1700	2200	2700
Refrigerant			R22/R404
Throttle Mode			Expansion Valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	65	65	68	68	68
Weight		kg	750	830	920	1100	1250
Dimensions	L	mm	1850	2000	2150	2600	3300
	W	mm	900	950	1000	1100	1500
	H	mm	1650	1650	1700	1700	1600

Directions：
1、The cooling capacity is based on a 35℃ ambient temperature, a –5℃ entering water temperature and a –10℃ leaving water temperature.
2、Design and specification are subject to change without prior notice.
3、All products are our standard products, please contact with us for special.
