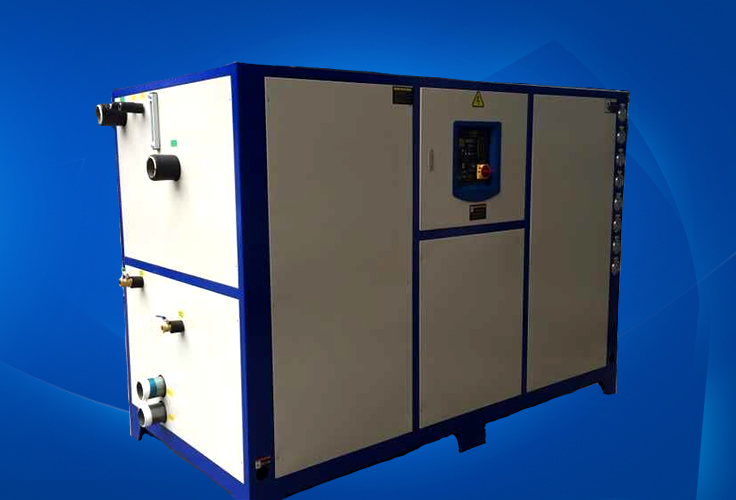

Water-cooled Industrial Chiller

Water-cooled Industrial Chiller（-5℃）Specifications

Model			RC-3WF	RC-5WF	RC-8WF	RC-10WF	RC-12WF
Cooling Capacity		kW	5.2	7.8	13.5	16.0	20.5
Cooling Capacity		103kcal/h	4.47	6.71	11.61	13.76	17.63
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	3.0	4.5	6.75	8.6	10.0
Compressor Type			Scroll
Compressor Power		kW	2.25	3.75	6.0	7.5	9.0
Pump Power		kW	0.55	0.55	0.75	0.75	1.15
Pump Head		m	22.5	21.0	25.5	22.5	24.0
Chilled Water Flow		m3/h	1.5	2.5	3.5	4.5	5.5
Cooling Water Flow		m3/h	1.8	3.0	4.2	5.4	6.6
Evaporator Type			Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
Water Tank Volume		L	55	90	120	200	200
Pipe Size		DN	25	25	32	40	40
Condenser			Shell and Tube Type/Double-pipe Type
Refrigerant			R22/R404
Throttle Mode			Capillary Tube/Expansion Valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	52	52	58	58	60
Weight		kg	130	155	280	400	520

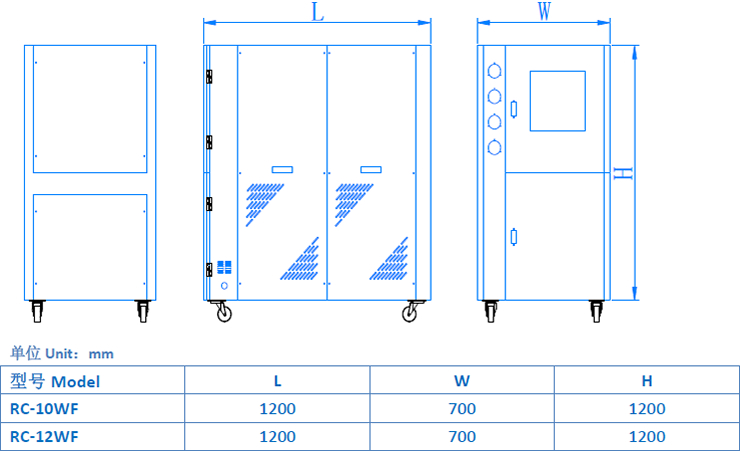

Dimensions	L	mm	1100	1100	1050	1200	1200
	W	mm	550	550	600	700	700
	H	mm	1000	1000	1250	1300	1300

Model			RC-15WF	RC-20WF	RC-25WF	RC-30WF	RC-40WF
Cooling Capacity		kW	25.0	34.5	40.5	48.0	58.0
Cooling Capacity		103kcal/h	21.5	29.67	34.83	41.28	49.88
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	12.75	17.5	21.0	26.5	33.0
Compressor Type			Scroll
Compressor Power		kW	11.25	15.0	18.75	22.5	30.0
Pump Power		kW	2.25	2.25	2.25	2.25	3.75
Pump Head		m	27.5	27.0	26.5	25.5	28.5
Chilled Water Flow		m3/h	7.5	9.0	10.5	13.0	18.0
Cooling Water Flow		m3/h	9.8	11.7	13.6	17.0	23.4
Evaporator Type			Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
Water Tank Volume		L	280	350	350	420	480
Pipe Size		DN	50	50	65	65	80
Condenser			Shell and Tube Type/Double-pipe Type
Refrigerant			R22/R404
Throttle Mode			Expansion valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	62	62	65	65	65
Weight		kg	650	800	880	1000	1150

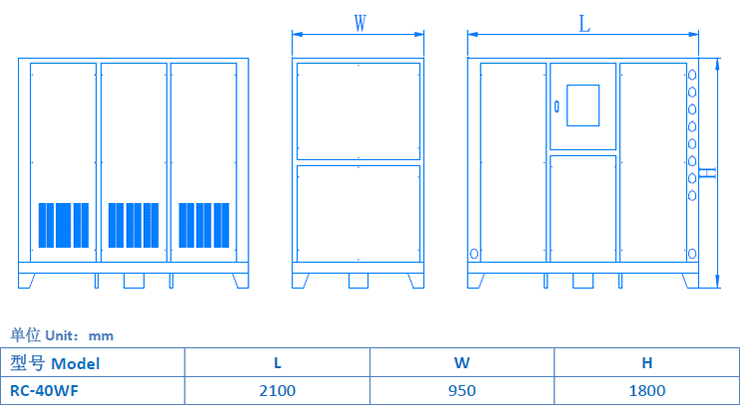

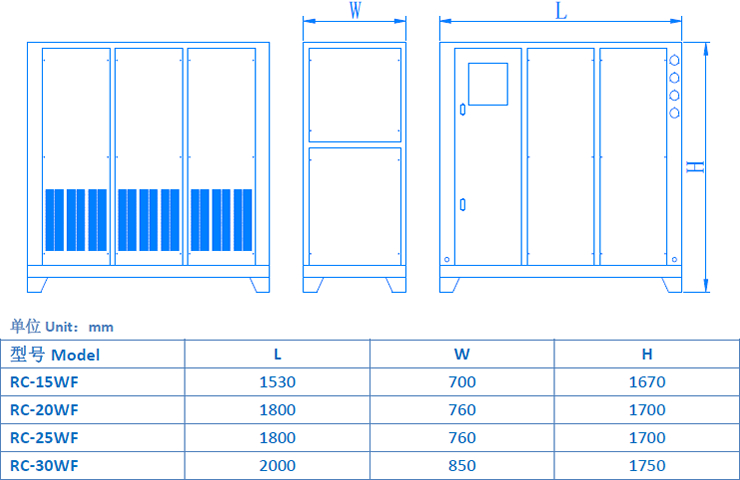

Dimensions	L	mm	1530	1800	1800	2000	2100
	W	mm	700	760	760	850	950
	H	mm	1670	1700	1700	1750	1800

Directions：

1、The cooling capacity is based on a 35℃ entering cooling water temperature, a 30℃ leaving cooling water temperature, a 0℃ entering chilled water temperature and a –5℃ leaving chilled water temperature.
2、Design and specification are subject to change without prior notice.
3、All products are our standard products, please contact with us for special design.

Water-cooled Industrial Chiller（-10℃）Specifications

Model			RC-3WF	RC-5WF	RC-8WF	RC-10WF	RC-12WF
Cooling Capacity		kW	4.0	6.2	10.5	13.5	17.0
Cooling Capacity		103kcal/h	3.44	5.33	9.03	11.61	14.63
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	3.0	4.5	6.75	8.6	10.0
Compressor Type			Scroll
Compressor Power		kW	2.25	3.75	6.0	7.5	9.0
Pump Power		kW	0.55	0.55	0.75	0.75	1.15
Pump Head		m	22.5	21.0	25.5	22.5	24.0
Chilled Water Flow		m3/h	0.89	1.5	2.0	2.5	3.2
Cooling Water Flow		m3/h	1.1	1.8	2.4	3.0	3.9
Evaporator Type			Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
Water Tank Volume		L	55	90	120	200	200
Pipe Size		DN	25	25	32	40	40
Condenser			Shell and Tube Type/Double-pipe Type
Refrigerant			R22/R404
Throttle Mode			Capillary Tube/Expansion valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	52	52	58	58	60
Weight		kg	130	155	280	400	520
Dimensions	L	mm	1100	1100	1050	1200	1200
	W	mm	550	550	600	700	700
	H	mm	1000	1000	1250	1300	1300

Model			RC-15WF	RC-20WF	RC-25WF	RC-30WF	RC-40WF
Cooling Capacity		kW	21.5	27.0	32.0	35.5	42.0
Cooling Capacity		103kcal/h	18.49	23.22	27.52	30.53	36.12
Power Supply		V/ph/Hz	380/3/50
Input Power		kW	12.75	17.5	21.0	26.5	33.0
Compressor Type			Scroll
Compressor Power		kW	11.25	15.0	18.75	22.5	30.0
Pump Power		kW	2.25	2.25	2.25	2.25	3.75
Pump Head		m	27.5	27.0	26.5	25.5	28.5
Chilled Water Flow		m3/h	4.5	6.0	7.5	9.0	11.0
Cooling Water Flow		m3/h	5.9	7.8	9.8	11.7	14.3
Evaporator Type			Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
Water Tank Volume		L	280	350	350	420	480
Pipe Size		DN	50	50	65	65	80
Condenser			Shell and Tube Type/Double-pipe Type
Refrigerant			R22/R404
Throttle Mode			Expansion valve
Protector			Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level		dB（A）	62	62	65	65	65
Weight		kg	650	800	880	1000	1150
Dimensions	L	mm	1530	1800	1800	2000	2100
	W	mm	700	760	760	850	950
	H	mm	1670	1700	1700	1750	1800

Directions：
1、The cooling capacity is based on a 30℃ entering cooling water temperature, a 35℃ leaving cooling water temperature, a -5℃ entering chilled water temperature and a -10℃ leaving chilled water temperature.
2、 Design and specification are subject to change without prior notice.
3、All products are our standard products, please contact with us for special design.
